Finite Element Flow Code Optimization on the Cray T3D

Stephon Saroff (AHPCRC-MSCI)

This is a second article on the porting and optimization of an AHPCRC finite element code on a Cray T3D. The first article appeared in the Winter/Spring 1995 issue of the AHPCRC Bulletin.

A Cray T3D system was installed at the Minnesota Supercomputer Center, Inc. (MSCI) in the Fall of 1993. At the present time, the system is configured with 512 processing elements and 32.8 Gigabytes of memory. Through a gift of time from MSCI and other arrangements, the AHPCRC has limited access to this system.

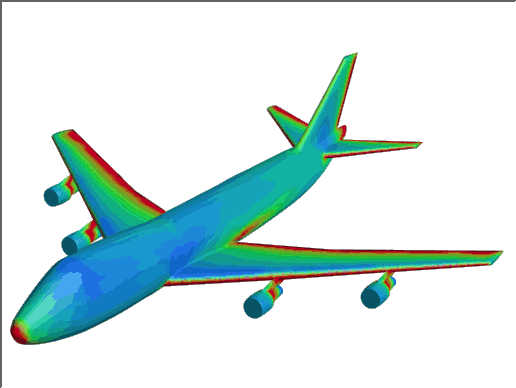

Figure 1. Flow past an aircraft modeled after 747. Pressure distribution on the aircraft surface at an inviscid flow condition of Mach 0.25.
The research group of Tayfun Tezduyar (Professor of Aerospace Engineering and Mechanics) ported a finite element flow solver, originally developed on and optimized for the Thinking Machines Corporation CM-5, to the Cray T3D. Since the Cray T3D provides more robust support for message passing models than for data parallel structures, the port required a translation of the code from data parallel CMF on the CM-5 to PVM message passing and nodal F77 on the T3D. The port involved manually decomposing the codes data structures and explicitly coding inter-processor communications. This was done by Marek Behr, an Assistant Professor at the AHPCRC, and Shahrouz Aliabadi, a Research Associate at the AHPCRC, and was described in the Winter/Spring 1995 Bulletin. Examples of compressible flow simulations, carried out by the 1995 Summer Institute students, are shown in Figures 1 and 2.

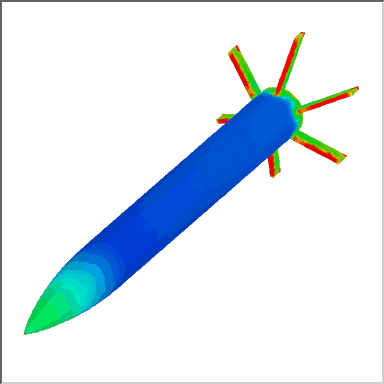

Figure 2. Flow past a missile geometry provided by ARL. Pressure distribution on the missile surface at an inviscid flow condition of Mach 2.5
The node level computations of the initial port of the code performed relatively poorly. This was not surprising. Although CM-5 and T3D processing nodes have similar nominal performance specifications (128 Mflops/node on the CM-5 compared to 150 Mflops/node on the T3D), their architectures are very different.

Table 1 provides the timing results following the initial port. Time to completion for the entire code is shown along with execution times of each of the major routines within that code. These major routines collectively account for over 95% of the total execution time.

T3DCM-5
time to completion3538.522097.81
blkuvp2052.24991.44
get_jac_turb315.56169.68
gen_matrix_vector_mult_noadd455.89203.03
scatter358.16259.69
gather207.48200.35
Table 1. Initial comparison of CM-5 and T3D timings (execution time in seconds on 32 nodes).

This author, with the participation of analysts from Cray Research and MSCI, undertook an effort to improve the nodal performance of the code (i. e. reduce the computation time required per processing element).

An examination of the incompressible flow code with non-matrix-free solver disclosed that the routines blkuvp, get_jac_turb and gen_matrix_vector_mult_noadd are compute intensive routines. The routines scatter and gather are inter-processor communications routines. It was decided to concentrate optimization efforts on blkuvp and get_jac_turb. The gen_matrix_vector_mult_noadd is a matrix algebra routine and should be optimized through calls to math library functions.

The optimization effort focused on issues of efficient register and cache usage, primarily through index reordering and use of temporaries. This is required because the T3D processing element uses an EV-4 Alpha microprocessor which has only one port to memory, a limited number of floating point registers (32), and only one cache (1K 64-bit words).

In the original CM-5 version of blkuvp, the bulk of the execution time was spent in a series of loops nested three deep, which (translated from CMF to F77) were of the form:

do na = 1,nen
   na0 = (na-1) * ndf
   nau = na0 + udf
   nav = na0 + vdf
   . . .
   do nb = 1,nen
      nbp = (nb-1) * ndf + pdf
      sh0sh0(ie) = sq(0,na,iq) * sq(0,nb,iq)
      sh1sh0(ie) = sh(1,na,ie) * sq(0,nb,iq)
      sh2sh0(ie) = sh(2,na,ie) * sq(0,nb,iq)
      . . .
      tmp1(ie) = - sh1sh0(ie) * eff0(ie) + gua(ie) * sh(1,nb,ie) * effs(ie)
      tmp2(ie) = - sh2sh0(ie) * eff0(ie) + gua(ie) * sh(2,nb,ie) * effs(ie)
      s(nau,nbp,ie) = s(nau,nbp,ie) + tmp1(ie)
      s(nav,nbp,ie) = s(nav,nbp,ie) + tmp2(ie)
      . . .
It was observed that there were a significant number of arrays of temporaries, for example:
do ie = 1,nec
   sh1sh0(ie) = sh(1,na,iq) * sq(0,nb,iq)
   sh2sh0(ie) = sh(2,na,ie) * sq(0,nb,iq)
While this is a necessary technique in CMF data parallel programming, it is not optimal on scalar or vector processors. Instead, the temporary arrays were replaced with scalar temporaries. This allows the compiler to keep values in registers and avoid cache misses.
do ie = 1,nec
   mysh1na = sh(1,na,ie)
   mysh2na = sh(2,na,ie)
   mysq0nb = sq(0,nb,iq)
   mysh1sh0 = mysh1na * mysq0nb
   mysh2sh0 = mysh2na * mysq0nb
This change reduced the time to completion of the main loop of "blkuvp" by more than 50%. To ensure more efficient memory access, and to avoid cache misses, the loop order was then changed to allow the right most array index to be associated with the outermost do loop (the index ie was generally the right most index).
do ie = 1,nec
   do nb = 1,nen
      nbp =(nb - 1) * ndf + pdf
      do na = 1,nen
         na0 = (na-1) * ndf
         nau = na0 + udf
         nav = na0 + vdf
         mysh1na = sh(1,na,ie)
         mysh2na = sh(2,na,ie)
         mysq0nb = sq(0,nb,iq)
         mysh1nb = sh(1,nb,ie)
         mysh2nb = sh(2,nb,ie)
         mysh1sh0 = mysh1na * mysq0nb
         mysh2sh0 = mysh2na * mysq0nb
         . . .
         tmp1 = - mysh1sh0 * eff0 + gua * mysh1nb * effs
         tmp2 = - mysh2sh0 * eff0 + gua * mysh2nb * effs
         s(nau,nbp,ie) = s(nau,nbp,ie) + tmp1
         s(nav,nbp,ie) = s(nav,nbp,ie) + tmp2
         . . .
Original CodeUsing TemporariesBoth Temporaries and Reordering
blkuvp (all)2052.241275.321094.70
blkuvp (main loop)1859.97744.00616.22
Table 2. Improvements in "blkuvp" performance (execution time in seconds on 32 nodes).

This restructuring resulted in an additional performance improvement in the main loop of blkuvp, whereby the execution time was reduced to 33% of its pre-optimization time. The results are shown in Table 2.

Similar steps were undertaken for "get_jac_turb". That is, loop order was reversed and temporaries replaced.

T3DCM-5
time to completion2164.812097.81
blkuvp880.96991.44
get_jac_turb151.45169.68
gen_matrix_vector_mult_noadd450.72203.03
scatter326.03259.69
gather206.69200.35
Table 3. Final comparison of CM-5 and T3D timings (execution time in seconds on 32 nodes).

The purpose of using scalar temporaries was to improve cache and register usage, thus reducing the amount of costly memory access. Each scalar value retained by the compiler in a register eliminates the need to access either cache (at 3 cycles per access) or main memory (at 22-39 cycles per access) for that value. However, since there are far more temporaries than registers (resulting in the spilling of some temporaries to cache), the improvement of the codes performance cannot be entirely attributed to register usage. This can be seen from the fact that significant gains in performance could be produced without a significant reduction in the number of private loads. With the substantial time saved by loading values from cache rather than from memory, a significant portion of the performance increase resulted from enabling the compiler to maintain cache integrity (i.e. keeping values in the cache, rather than having to read them from main memory). The final comparison is shown in Table 3.
