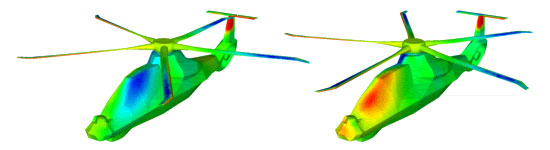

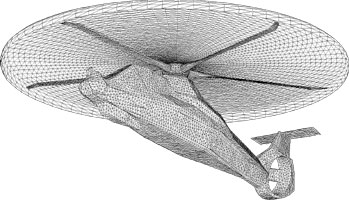

## Mesh Update Methods for Simulation of Spinning Mechanical ComponentsThe T*AFSM introduced a number of advanced mesh update methods for computation of moving boundaries and interfaces with the DSD/SST formulation [1-15]. These include the Shear-Slip Mesh Update Method (SSMUM) [6, 8, 10], which was developed computation of flows with objects in fast, linear or rotational relative motion. The SSMUM was first implemented by Masayuki Kaiho (Hitachi, Japan) for objects in fast, linear relative motion. This was applied first to incompressible flow around two high-speed trains passing each other in a tunnel. Compressible flow computations for the same problem was first reported in [6]. Following that, the SSMUM was implemented for objects in fast, rotational relative motion [16-17]. The SSMUM concept can be applied to turbomachinery systems, propellers, helicopter blades, and mixing systems. The figures show the mesh and air pressure on the surface of a helicopter fuselage and rotor at two different instants in time. The simulation was carried out on a CRAY T3E-1200, and was reported in detail in [17]. ## References: 1. T.E. Tezduyar, "Stabilized Finite Element
Formulations for Incompressible Flow Computations", 2. T.E. Tezduyar, M. Behr, S. Mittal and J. Liou,
"A New Strategy for Finite Element Computations Involving Moving
Boundaries and Interfaces--The DSD/ST Procedure: II. Computation of
Free-surface Flows, Two-liquid Flows, and Flows with Drifting Cylinders",
3. T.E. Tezduyar, M. Behr, S. Mittal and A.A.
Johnson "Computation of Unsteady Incompressible Flows with the Stabilized
Finite Element Methods--Space-Time Formulations, Iterative Strategies and
Massively Parallel Implementations", 4. T.E. Tezduyar, S. Aliabadi, M. Behr, A. Johnson
and S. Mittal, "Parallel Finite Element Computation of 3D Flows", 5. T.E. Tezduyar, S.K. Aliabadi, M. Behr and S.
Mittal, "Massively Parallel Finite Element Simulation of Compressible and
Incompressible Flows", 6. T. Tezduyar, S. Aliabadi, M. Behr, A. Johnson,
V. Kalro and M. Litke, "Flow Simulation and High Performance Computing",
7. T. Tezduyar, S. Aliabadi, M. Behr, A. Johnson,
V. Kalro and M. Litke, "High Performance Computing Techniques for Flow
Simulations", Chapter 10 in 8. T. Tezduyar, "CFD Methods for Three-Dimensional
Computation of Complex Flow Problems", 9. T. Tezduyar and Y. Osawa, "Methods for Parallel
Computation of Complex Flow Problems", 10. Tayfun E. Tezduyar, "Finite Element Methods for
Flow Problems with Moving Boundaries and Interfaces", 11. T. Tezduyar, "Finite Element Interface-Tracking
and Interface-Capturing Techniques for Flows with Moving Boundaries and
Interfaces", ASME Paper IMECE2001/HTD-24206, 12. K. Stein, T. Tezduyar and R. Benney, "Mesh
Moving Techniques for Fluid-Structure Interactions with Large
Displacements", to appear in 13. K. Stein, T. Tezduyar and R. Benney, "Mesh
Update with Solid-Extension Mesh Moving Technique", 14. K. Stein and T. Tezduyar, "Advanced Mesh Update
Techniques for Problems Involving Large Displacements", 15. T. Tezduyar, "Interface-Tracking and
Interface-Capturing Techniques for Computation of Moving Boundaries and
Interfaces", 16. M. Behr and T.E. Tezduyar, "The Shear-Slip Mesh
Update Method", 17. M. Behr and T. Tezduyar, "Shear-Slip Mesh
Update in 3D Computation of Complex Flow Problems with Rotating Mechanical
Components", |
